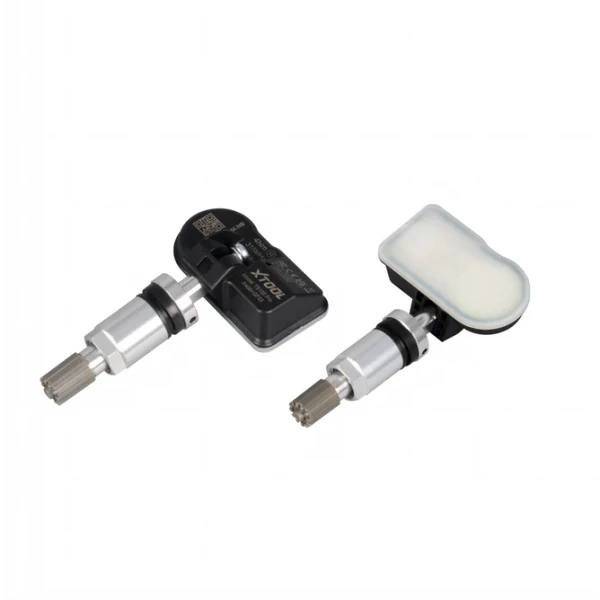

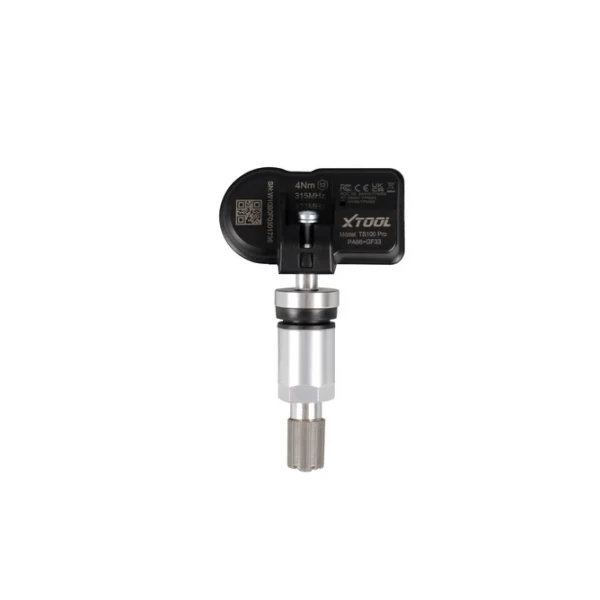

The XTOOL TS100 PRO is a universal programmable TPMS tire pressure sensor designed as a replacement solution for original tire pressure monitoring system sensors. This package includes 4 TS100 PRO sensors, making it suitable for automotive repair shops, tire service centers, and technicians performing TPMS sensor replacement and service.

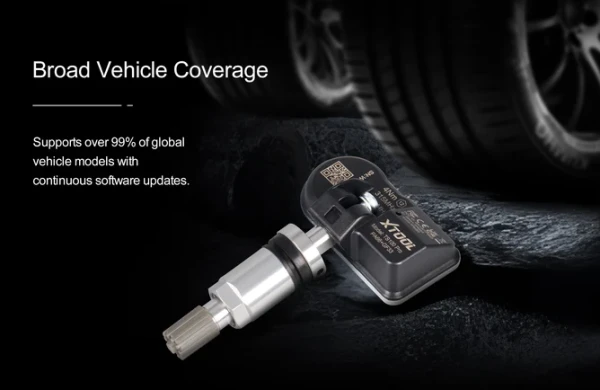

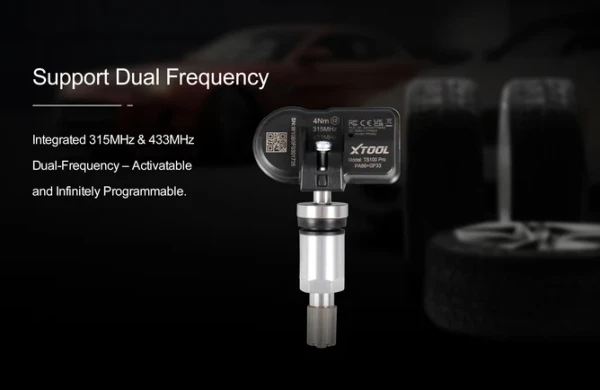

The TS100 PRO integrates both 315MHz and 433MHz frequencies into a single programmable sensor. XTOOL states that the sensor supports more than 99% of global vehicle models, with coverage supported through ongoing software updates. The sensor can be activated, programmed repeatedly, and matched for supported TPMS applications.

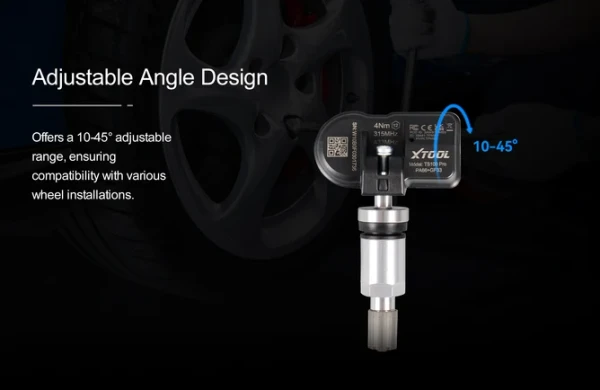

Each TS100 PRO features a 10°–45° adjustable installation range, allowing the sensor position to accommodate different wheel installations. Its PA66+GF30 housing carries an IP67 waterproof rating and is designed to operate in temperatures ranging from -40°C to 105°C.

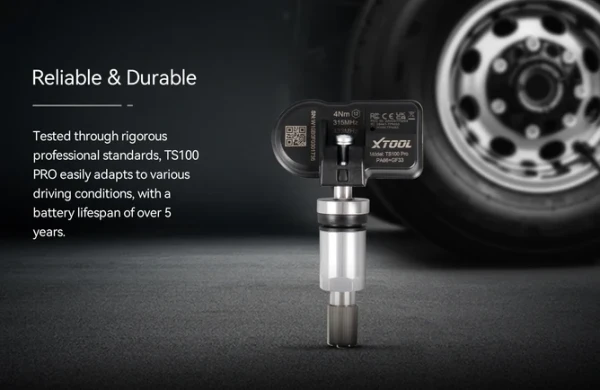

The built-in battery is rated by XTOOL for a service life of at least 5 years. The sensor supports a pressure monitoring range of 0–900 kPa with a stated pressure reading accuracy of ±10 kPa.

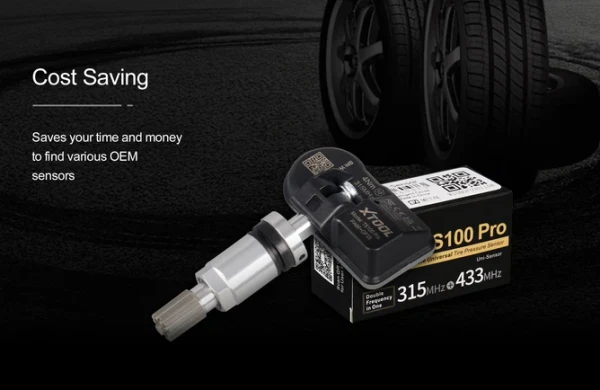

For shops that regularly service vehicles with different TPMS sensor requirements, the XTOOL TS100 PRO provides a dual-frequency programmable replacement option that can reduce the need to stock numerous application-specific sensors.

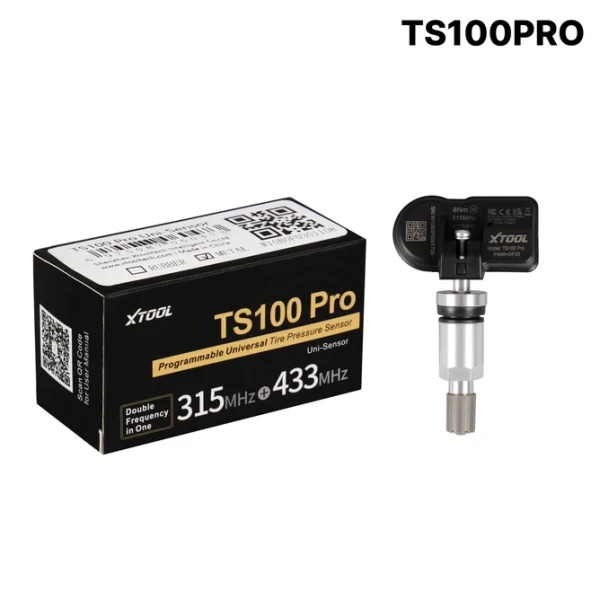

4-piece TS100 PRO sensor package
Universal programmable TPMS replacement sensor
Integrated 315MHz and 433MHz dual-frequency operation
Supports more than 99% of global vehicle models, according to XTOOL
Activatable and repeatedly programmable
10°–45° adjustable installation range
Built-in battery with a rated life of 5 years or longer
IP67 waterproof rating
Operating temperature range: -40°C to 105°C
Pressure monitoring range: 0–900 kPa
Pressure reading accuracy: ±10 kPa
Sensor dimensions: 46.4 × 16.2 × 25 mm
Housing material: PA66+GF30
SKU: XTOOLTS100PROMETAL
