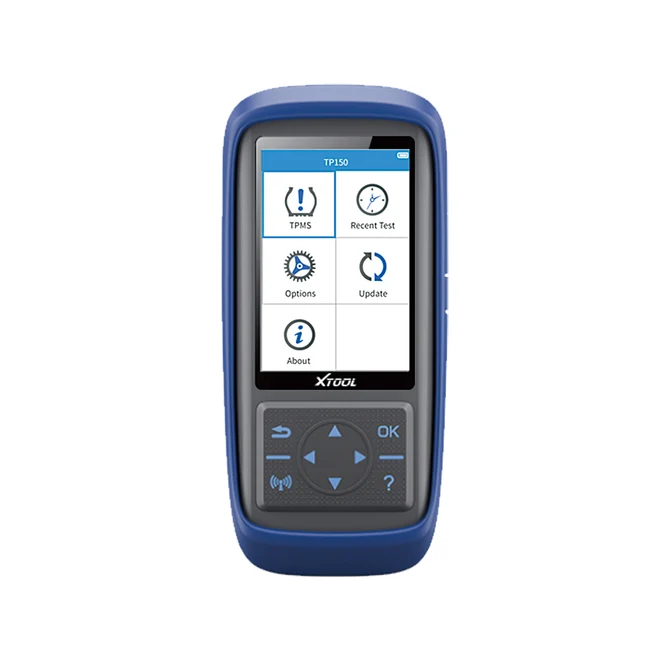

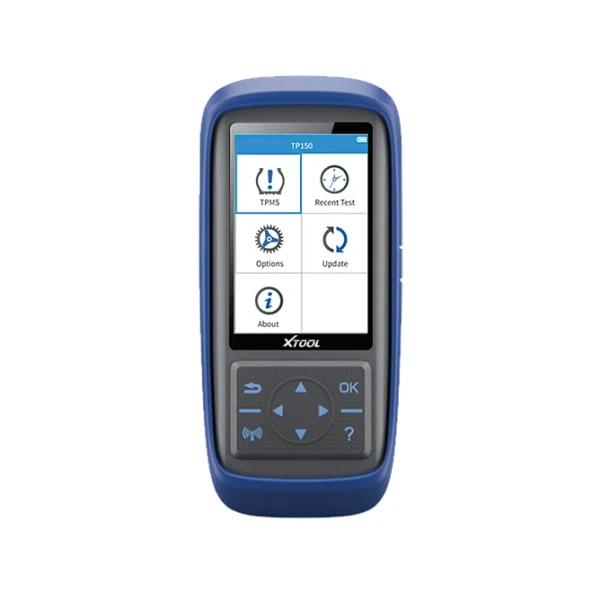

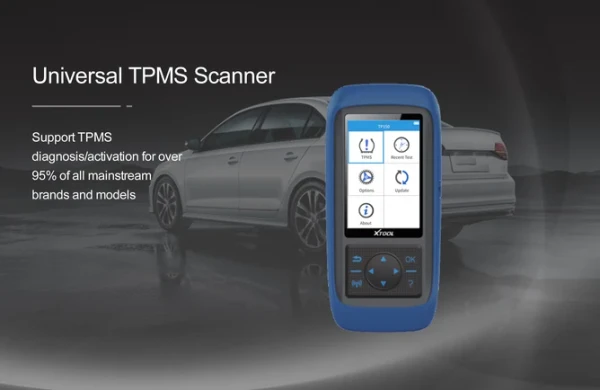

The XTOOL TP150 TPMS Programming and Diagnostic Tool is designed for automotive technicians and repair shops that perform tire pressure monitoring system (TPMS) diagnosis, sensor programming, and sensor matching. Combining multiple TPMS service functions in one handheld device, the TP150 provides a practical solution for servicing tire pressure monitoring systems across a wide range of vehicle applications.

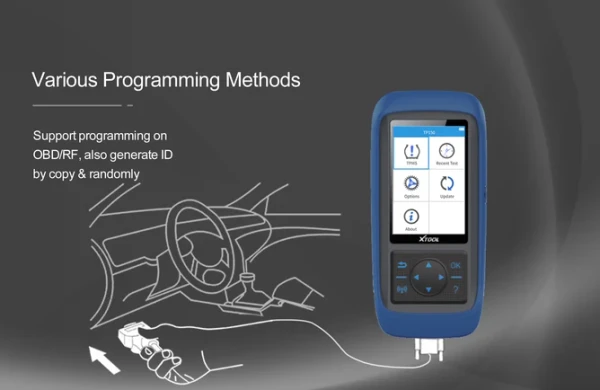

The TP150 supports activation of both 315MHz and 433MHz tire pressure sensors and is designed to perform tire pressure diagnosis on thousands of vehicle models. It can also wirelessly program 1 to 8 XTOOL TS100 universal programmable TPMS sensors, helping technicians work with different vehicle applications using a single TPMS service tool.
For convenient operation, the TP150 features a 320 × 480 TFT color display and a built-in 3000mAh 3.7V lithium-polymer battery. Its available interfaces include USB Type-C and DB15, while the tool itself measures 200 × 92 × 33 mm.

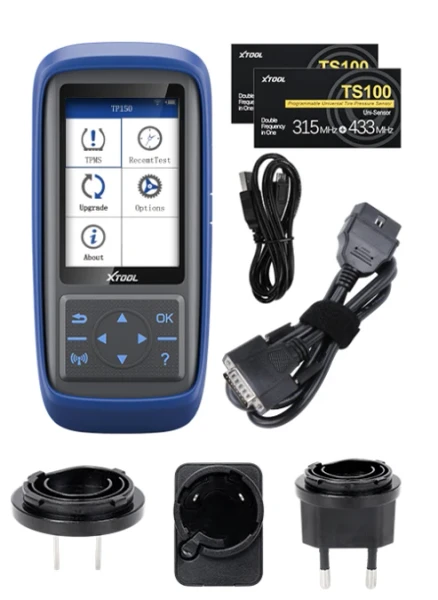

The kit includes the TP150 tool along with two TS100 sensors, an OBD II connection, USB Type-C cable, charger, tool case, user manual, certificate of quality, and packing list, providing the primary components listed by XTOOL for TPMS diagnosis and programming.
SKU: XTOOLTP150A001
Combines TPMS sensor programming, tire pressure diagnosis, and tire pressure matching in one handheld tool

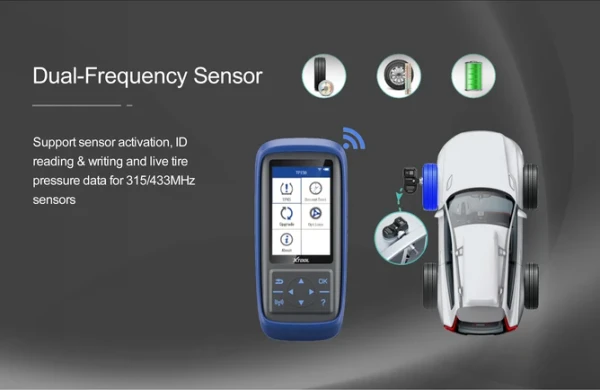

Supports activation of 315MHz and 433MHz TPMS sensors
Performs tire pressure diagnosis across thousands of vehicle models

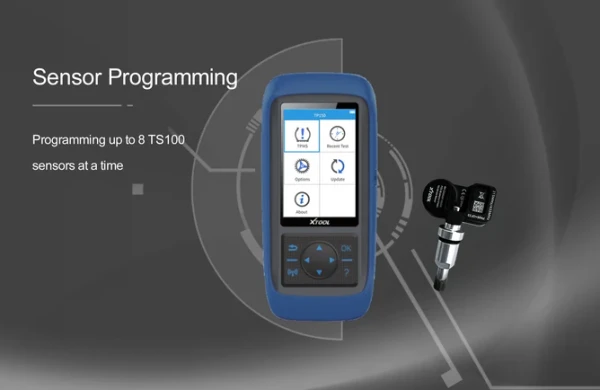

Wirelessly programs 1–8 XTOOL TS100 universal programmable TPMS sensors
Features a 320 × 480 TFT color display
Built-in 3000mAh 3.7V lithium-polymer battery
USB Type-C and DB15 interfaces
Operating temperature range: 14°F to 140°F (-10°C to 60°C)
Storage temperature range: -4°F to 158°F (-20°C to 70°C)
Compact dimensions: 200 × 92 × 33 mm
Includes two TS100 sensors

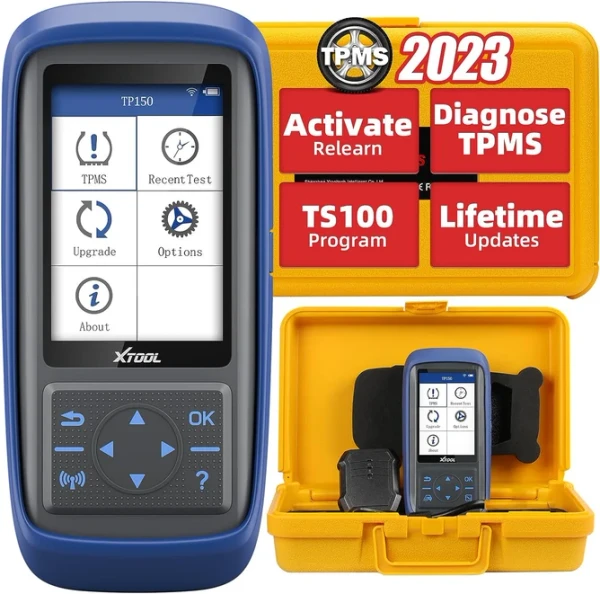

Supplied with tool case, charger, OBD II connection, and USB Type-C cable
