Does Your Shop Have the New Subaru 360-Degree Surround View Camera Calibration Mats?

Subaru's 360-degree surround-view camera system gives drivers a seamless bird's-eye view around the vehicle, but that view depends on accurate calibration whenever the cameras or surrounding components are disturbed.

Subaru's advanced 360-degree surround-view camera system gives drivers excellent low-speed visibility, but it depends on precise calibration whenever components like side mirrors or bumpers are replaced, or after a wheel alignment.

The calibration process aligns the feed from all four cameras into a seamless, distortion-free bird's-eye view. On vehicles like the Ascent, Forester, Outback, and WRX, drivers rely on that surround-view monitor to navigate tight parking spaces safely, which is exactly why keeping these systems properly aligned matters.

The system has been rolling out across the Subaru lineup over the past few years. The Ascent picked it up first, on upper trims starting with its 2023 mid-cycle refresh. The Forester followed with its 2025 redesign, offering it standard on the Touring and Touring Hybrid trims. Most recently, the Outback and WRX added it for the 2026 model year on their upper trim packages.

What the 360-Degree Calibration Process Involves

Unlike a simple backup camera, Subaru's 360-degree system blends feeds from four cameras, mounted at the front grille, rear tailgate, and both side mirrors, to generate a top-down composite image.

Calibrating this multi-camera array isn't something that can be handled with a quick DIY fix, because the system needs known reference points to stitch the images together correctly.

A professional calibration service typically starts with vehicle preparation. The car needs to sit on a flat, level surface with properly inflated tires, so it rests at the correct ride height. From there, technicians position specialized calibration target mats at precise distances around the vehicle.

Using Subaru's SSM diagnostic software (SSM5 for these 2023-and-newer model years) or ADAS calibration equipment such as the Autel calibration mats for Subaru's Multiview system , technicians communicate with the camera ECU to compare real-world measurements against all four camera feeds, stitching them together into one accurate view.

The Right Mats Make the Setup Possible

Because the Subaru system relies on multiple camera feeds and precise reference points, technicians need the correct target layout for the vehicle and calibration procedure being performed.

The Autel set of calibration mats for Subaru (CSC1014-17-18A-18B) is designed for the Multiview system found on the Ascent, Forester, Outback, and WRX.

For shops handling these vehicles regularly, having the correct mat set available in-house can make the difference between completing the calibration internally and sending the vehicle somewhere else.

Why Recalibration Is Critical

If camera angles drift after a minor collision, a wheel alignment, or body shop repairs, the stitched image can become distorted.

Misaligned cameras can create blind spots or throw off parking distance guidelines, which directly undermines the safety benefit the system is supposed to provide.

For a shop, that means recognizing calibration as part of the repair workflow rather than treating it as a separate issue that can be addressed later.

When Subaru 360 Calibration Is Required

Calibration is required any time a camera is removed, installed, or replaced, and any time a component near a camera is removed, installed, or replaced.

It's also required after a wheel alignment.

Shops that already run alignments should keep that last trigger in mind. A routine alignment on an equipped Subaru can turn into a calibration job, so building that into the estimate and workflow up front can help avoid surprises at delivery.

What Comes in the Autel Subaru Mat Kit

The Autel set of calibration mats for Subaru (CSC1014-17-18A-18B) covers the Multiview system on the Ascent, Forester, Outback, and WRX.

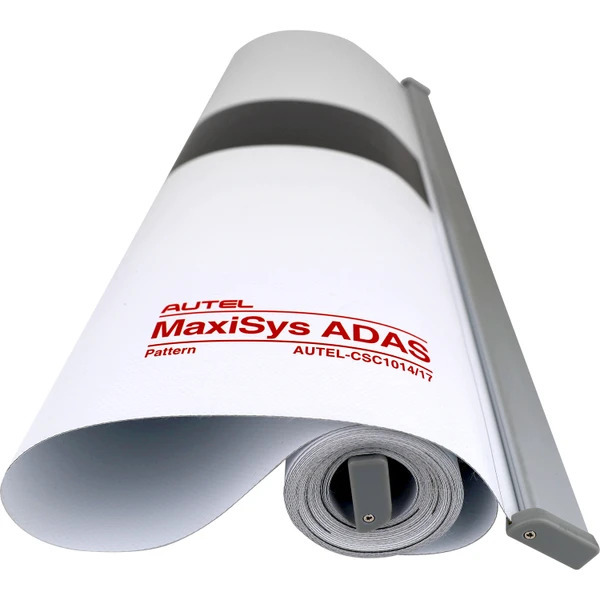

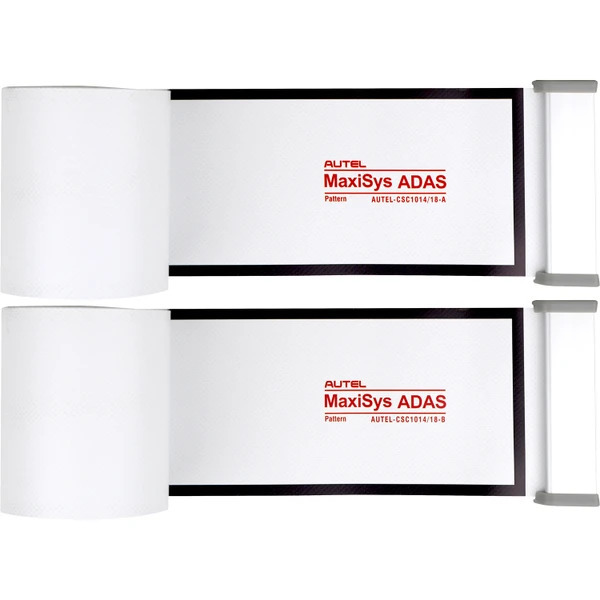

The kit contains a vinyl target and pattern mat plus four placement guide mats. The vinyl mats have weighted ends to help keep them in place during setup.

The kit is also covered by a one-year limited warranty.

Getting Your Shop Ready

The mats are only one part of the setup. A shop needs a flat, level bay with enough clear floor space, a scan tool or calibration platform that supports Subaru, and the correct software access for the model year being serviced.

Shops that plan ahead on all three can take these jobs in-house instead of sending them out and losing the repair revenue.

Keep Subaru Multiview Calibrations In-House

Subaru's 360-degree surround-view system is becoming available on more vehicles, including the Ascent, Forester, Outback, and WRX. As more of these vehicles enter repair shops, technicians need to be prepared for the calibration requirements that come with them.

The right calibration mats, a suitable calibration setup, and the correct Subaru software give shops the tools to handle these procedures as part of their existing workflow.

If your shop is gearing up to handle Subaru Multiview calibrations, ADAS Depot carries the Autel calibration mat set and the SSM3/SSM4/SSM5 software subscription to help get the job done in-house.

Ready for Subaru Multiview Calibration?

Equip your shop with the Subaru calibration mats and software needed to handle 360-degree surround-view camera calibration in-house.
