Authorized distributer of Launch Tech
Tool Part # 341184002S
Software Subscription Part # 301180865
Product SN First 5 Prefix: 98780

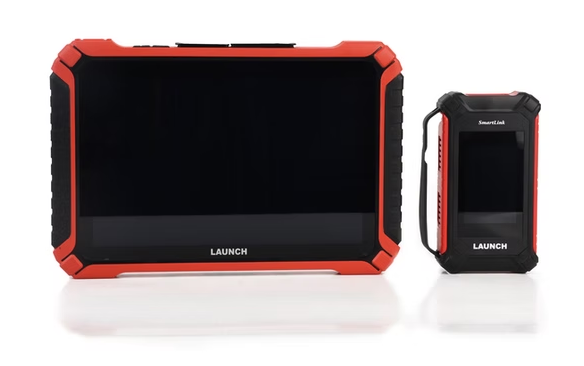

The Launch Tech X-431 Throttle 5S with 4-Channel Scope Kit (341184002S) is a professional automotive diagnostic system designed for technicians who need comprehensive vehicle diagnostics and advanced electrical troubleshooting capabilities. Combining the X-431 Throttle V diagnostic tablet with the O2-2 four-channel oscilloscope, this kit allows technicians to perform full-system diagnostics, bidirectional testing, and electrical waveform analysis using a versatile diagnostic platform.
Powered by an Android 13 operating system, a 2.0 GHz octa-core processor, 12GB RAM, and 512GB internal storage, the X-431 Throttle 5S supports efficient diagnostic workflows. Its large 13.6-inch, 2560 × 1600 high-resolution display provides ample viewing space for diagnostic information, live data, and system topology maps.
The X-431 Throttle 5S supports diagnostic functions across a wide range of domestic, Asian, and European vehicles. Technicians can read and clear diagnostic trouble codes (DTCs), monitor live data streams, perform actuator tests, and access supported vehicle service functions.
The system supports CAN FD and DoIP communication protocols for compatible modern vehicles. Automatic VIN identification helps technicians identify vehicle information, while topology mapping provides a visual representation of supported vehicle control modules.
Additional diagnostic capabilities include remote diagnosis, I/M readiness checks, and supported security gateway access. Integrated repair information resources, including CODEASSIST and X-431 FIX, provide additional troubleshooting assistance, subject to applicable software access requirements.
The included Launch O2-2 4-Channel Scopebox expands the system's diagnostic capabilities beyond conventional scan tool functions.
Technicians can capture and compare up to four electrical signals simultaneously, helping identify irregularities in sensors, actuators, ignition systems, and vehicle electrical circuits.
The oscilloscope supports waveform visualization, synchronized signal comparison, and CAN/LIN protocol decoding. These functions are particularly useful when investigating intermittent electrical problems or verifying component operation during diagnostics.
The X-431 Throttle 5S supports additional LAUNCH diagnostic accessories and solutions, including compatible ADAS calibration equipment, TPMS tools, battery testing equipment, videoscopes, and immobilizer programming accessories.
Optional software and hardware modules can extend the platform's diagnostic capabilities for additional vehicle applications.
Designed for professional automotive repair shops, diagnostic specialists, and technicians performing electrical troubleshooting, the Launch Tech X-431 Throttle 5S with 4-Channel Scope Kit combines vehicle system diagnostics and oscilloscope testing in one comprehensive package.
Compatibility Note: Diagnostic functions vary by vehicle make, model, year, and software coverage. Additional accessories, subscriptions, or activation may be required for certain functions. Static ADAS calibration requires separate activation and appropriate calibration equipment.
Professional diagnostic system: Combines the X-431 Throttle V scan tool with the O2-2 four-channel oscilloscope for vehicle diagnostics and electrical testing.
4-channel oscilloscope: Captures and compares four electrical signals simultaneously for sensor, actuator, ignition, and circuit troubleshooting.
13.6-inch high-resolution display: Features a 2560 × 1600 screen for viewing diagnostic information, live data, and waveforms.
High-performance hardware: Equipped with Android 13, a 2.0 GHz octa-core processor, 12GB RAM, and 512GB storage.
Full-system diagnostics: Supports DTC reading and clearing, live data monitoring, bidirectional control, and supported service functions.
Modern vehicle protocols: Supports CAN FD and DoIP communication on compatible vehicles.
Topology mapping: Displays supported vehicle control modules to assist with system-level troubleshooting.
Automatic VIN identification: Helps identify supported vehicles and streamline diagnostic setup.
Remote diagnostic capability: Supports technician-to-technician remote diagnostic assistance.
Diagnostic repair resources: Supports CODEASSIST and X-431 FIX repair information services, subject to access requirements.
Smartlink C diagnostic interface: Provides vehicle communication capabilities for the X-431 diagnostic platform.
Dual-band Wi-Fi: Supports 2.4 GHz and 5 GHz wireless connectivity.
Expandable capabilities: Compatible with supported LAUNCH ADAS, TPMS, battery testing, and other specialty diagnostic accessories.
Rechargeable battery: Features a 9,360 mAh, 7.6V (71.1Wh) battery.
