Launch Tech EV Battery Pack Module Charging & Discharging Equipment – EVP711

$10,995.99
SKU:
LAUNCH-EVP711
Minimum Purchase:
1 unit

Authorized distributor of Launch Tech

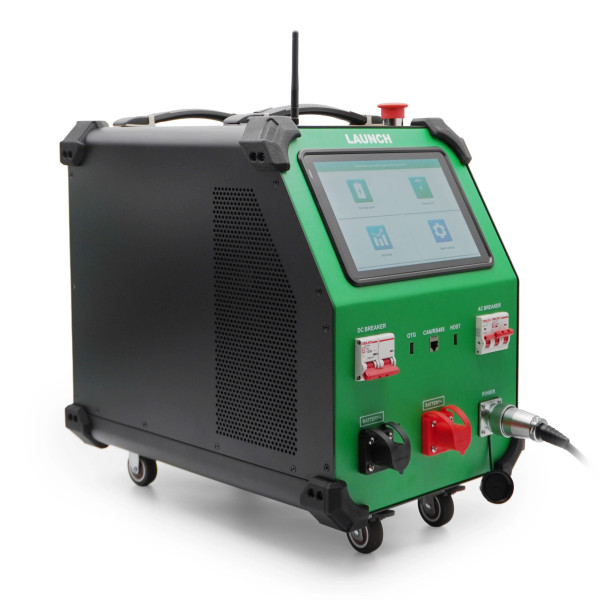

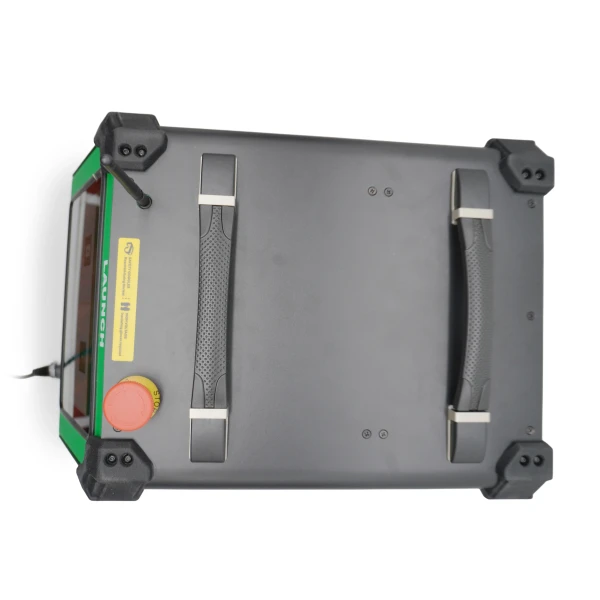

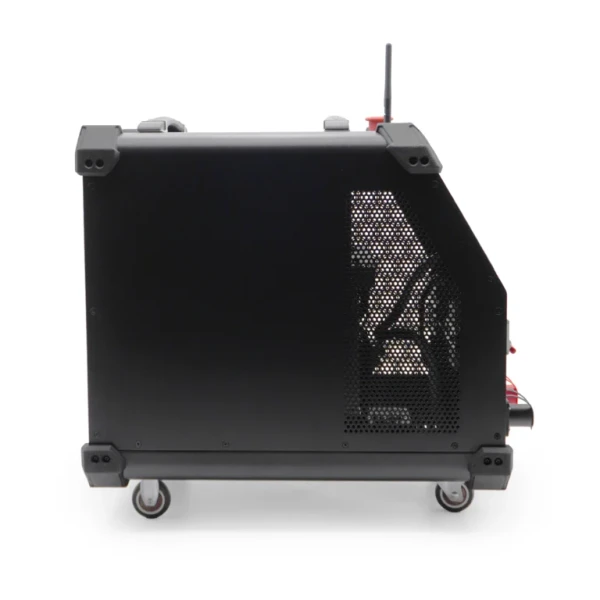

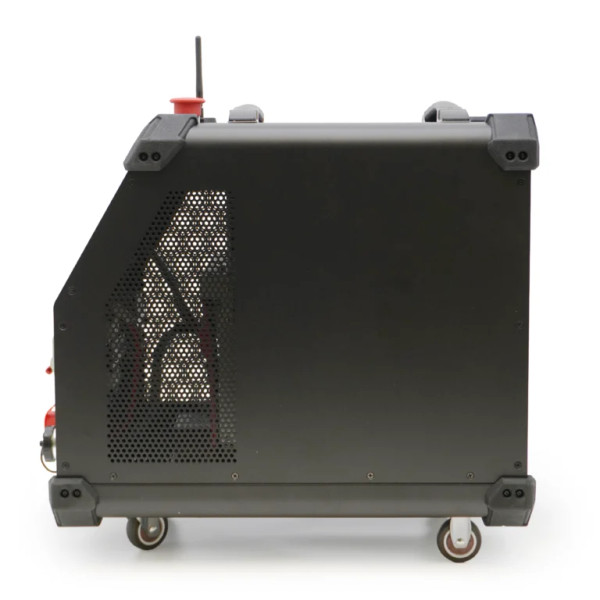

Launch Tech EV Battery Pack Module Charging & Discharging Equipment – EVP711

$10,995.99

EV Battery Pack Module Charging & Discharging Equipment – EVP711

The EVP711 EV Battery Pack Module Charging & Discharging Equipment enables fast, precise, and safe testing and maintenance of lithium and NiMH battery modules. With real-time monitoring, customizable charge/discharge settings, and built-in safety protections, it helps technicians maximize battery performance while reducing the risk of damage or errors.


features

FEATURES



Battery Compatibility



Wide Battery Support

Works with lithium and NiMH.



Display Data



Real-Time Data Visualization

Displays voltages, currents, and capacities.



Report Options



Data Storage & Export

Saves records and exports to USB.



Safety Feature



BMS Interference Minimization

Protects battery management systems effectively.



Battery Test Modes



Flexible Charging Modes

Supports multiple voltage and current settings.



Hardware Safety Alerts



Hardware Safety Alerts

Warns users of potential issues.



Customizable Charge/Discharge Rules



Customizable Charge/Discharge Rules

Set rules per battery or cell.



Individual Cell Voltage Monitoring



Individual Cell Voltage Monitoring

Tracks each cell and terminal in real time.



Cell Protection Settings



Cell Protection Settings

Prevents overcharge and overdischarge.



Group Terminal Protection



Group Terminal Protection

Guards against voltage, current, and temperature issues.



Parameter Presets



Parameter Presets

Configure battery type, voltage, current, cells.



specs

SPECS


Charging Current
Charging Current

Max Current 100A / Maximum Power 4.4kW

Data Communication
Data Communication

RS-485

Discharge Current
Discharge Current

Max Current 100A / Maximum Power 7.2kW

Input Power
Input Power

90-264V AC, 50/60Hz

Screen Size
Screen Size

10.1″ LCD touch screen

Voltage Range
Voltage Range

2-400V DC
