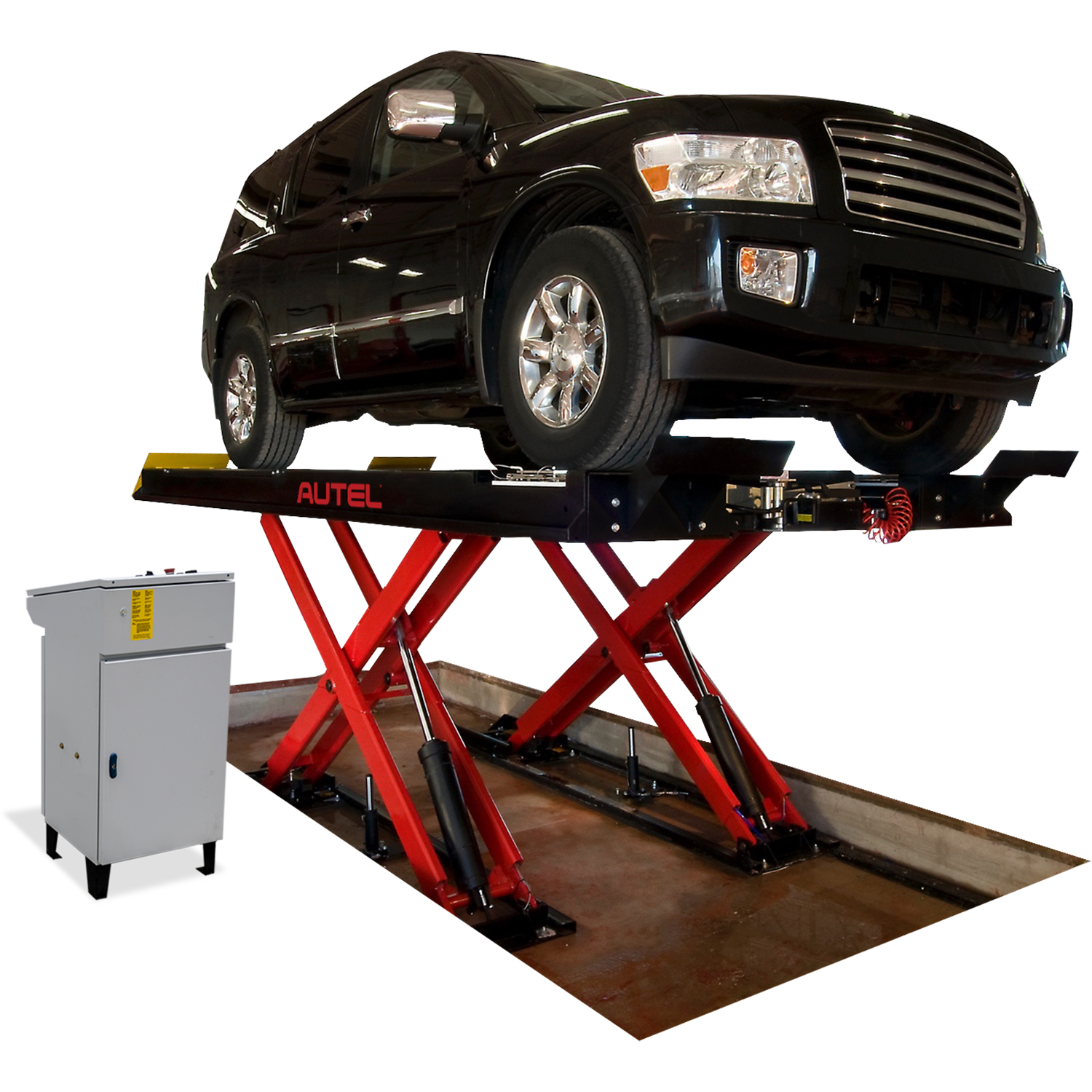

The Autel 16K Open Scissor Alignment Lift, part number S16ALOR1FMX, is an ALI-certified 16,000-lb. capacity scissor alignment lift configured with bolt-on extended runways and a flush-mount installation for professional alignment service. The lift features an open front and rear design and is equipped with pneumatic-locking full-floating rear slip plates and pneumatic-locking stainless steel front radius plates with UHMW turn plate pocket protectors to support accurate alignment procedures. Standard equipment includes rollback bars, a fixed mounted front wheel stop, and two 8,000-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents, each backed by a five-year parts warranty.

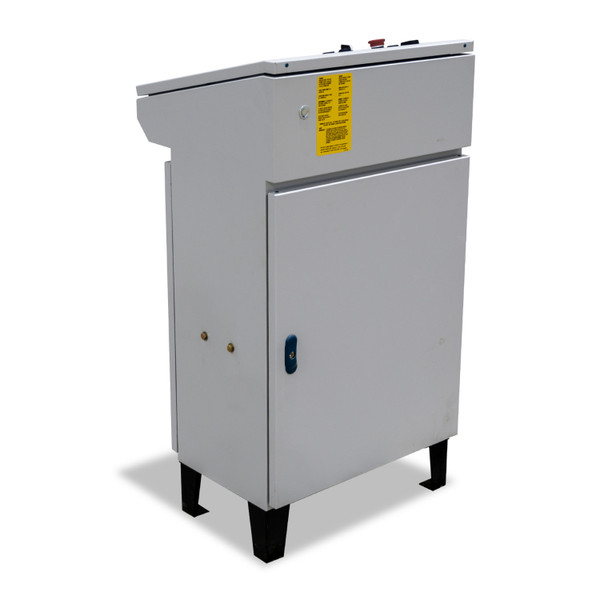

Technician-focused features include a center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel. Operation is managed through a console-mounted control system with lock/unlock plate controls, an air solenoid, and terminal blocks for communication with Autel systems, powered by a 220-volt, single-phase power unit. The lift is finished with black runways and baseframes, yellow front and rear ramps, and a red scissor assembly, accented with a red Autel logo label. Made in North America.
• 16,000-lb. capacity scissor, flush-mount alignment lift with bolt-on extended runways
• Open front and rear design
• Full-floating, Pneumatic-locking rear and front radius plates and UHMW turn plate pocket protectors
• Includes rollback bars and a fixed mounted front wheel stop
• Includes two 8,000-lb. heavy-duty air/hydraulic rolling jacks with integrated rail detents
• Center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel
• Console-mounted 220-volt, single-phase power unit
• Finished in black runways and baseframes, yellow front and rear ramps, and red columns, accented with a red Autel logo label
• ALI Certified and North American made
• 3-Year Limited warranty on lift, 5-year parts warranty on jacks, 90 day warranty on accessories
