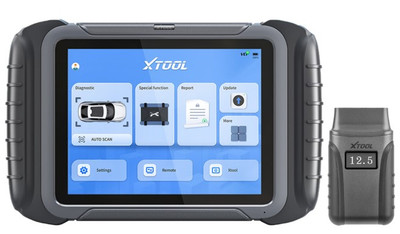

XTool XT80 Smart Diagnostic System

XT80 is an automotive smart diagnostic system with 8 inches LCD display, which is designed for mechanics, electricians, and car maintenance shops. It supports full OBDII function and automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. 38 common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more than 85 brands, 10000 cars.

● 8-inch, 1024x768 high-resolution touchscreen tablet, 4-core processor with 64 GB storage.

● Long-lasting 5000mAh rechargeable battery, 8 MP rear camera, equipped with the videoscope.

● Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover and BMW and CAN FD for GM.

● Full system diagnostics on 1996 and newer U.S., Asian and European and Chinese vehicles.

● Automatic detection: Scan all available systems with Topology Mapping.

● Read/Erase Codes, View Freeze Frame and Live Data.

● Perform Actuation Tests (bi-directional controls), Coding and Adaptations.

● Autoscan for rapid vehicle identification.

● Perform ADAS (inc. Camera/s, Radar etc.) Systems Calibrations with additional purchase.

• Operating System：Android 10
• Processor：4 Core 1.50GHz
• Memory：4G RAM, 64G ROM
• Display：8-inch, 1024×768P
• Communication Method：Wired
• Connectivity：Type-C, USB 3.0
• Camera：8.0 Megapixel, AF with Flashlight
• Battery：5000mAh, 7.2V
• Auto Input/Output：Microphone, Speaker
• Working Voltage：9-36V
• Working Temperature：0 to 40℃
• Storage Temperature：-40 to 60℃
• Humidity：<90%

Accessories

• Tool kit
• Certificate of Quality
• Packing List
• Quick Start Guide
• Carton
• XV100 Endoscope (Separate packaging)

Main Units

• Power adapter
• US power cable
• EU power cable
• UK power cable
• Tablet
• USB cable

Test Connectors

• OBDII-16 Adapter
• DB15 Main Cable
