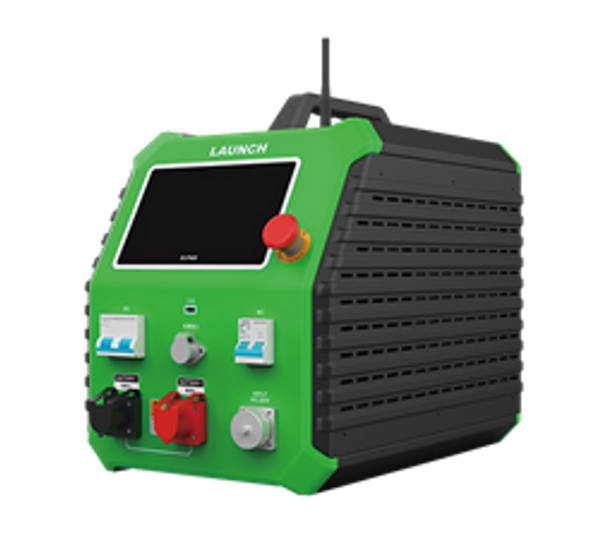

Launch Tech ELP400 EV Battery Pack Module Charging and Discharging Device

ELP400 EV BATTERY PACK MODULE CHARGING AND DISCHARGING DEVICE

ELP400 has built-in various test and maintenance modes, which are suitable for the discharge, charging, cycle charging and discharging tests of various lithium batteries on the market. Adopting an intelligent operating system and supports wireless data transmission, it helps to maintain and manage the battery pack, thus extending its service life.

• The 7-inch LCD touch screen and the intuitive menu simplified the operation
• Portable, easy to carry and transport
• Applied to all common lithium baattery packs testing with various voltage levels.
• Equalizing maintenance test mode can activate the lithium battery performance completely.
• Support intelligent equalizing function, and equalizing maintenance parameter customization.
• Adopt wave width modulation technology, high efficiency, high power factor, low noise, low electromagnetic interference.
• Support the safety pretection functions such as overvoltage, undervoltage, overcurrent, output short curcuit, anti-reverse pretection and overheating protection.
• Multiple discharge auto-stop conditions make testing mode more intelligent and flexible, and avoid over-charge and over-discharge.
• Customized setting the total charging time, constant voltage time, charging capacity, and charging current.

Specifications

• Power Input: AC 90~265V
• Data Communication: CAN RS485
• Data Dump: U disk
• Data Storage: 16G
• Modual Data Acquisition Communication: Harness sampling
• Group Voltage Accuracy: ≤±0.5%FS+0.3V, resolution: 0.001V
• Cell Voltage Accuracy: ≤±0.1%FS+5Mv, resolution: 0.001V
• Current Measurement Accuracy: ≤±0.1%FS+0.2A, Resolution: 0.001V
• Charging / Dischargingt Voltage Range: ≤±0.1%FS+0.2A
• Charging Current Range: 0~100A, maximum power 4.4kw
• Discharging Current Range: 0~100A,maximum power 7.2kw
• Charging Control: Constant surrent charging + constant voltage charging
• Discharging Mode: Constant current discharging
• Charging and Discharging Data Acquisition: In-camera active measurement + external can communication data acquisition
• Radiation Method: Forced air cooling
• Temperature: Working temperature range: 5~40°C; Storage temperature: -20~70°C
• Humidity: Relative humidity 0~90% (40±2°C)
• Elevation: Rated altitude 2000m
