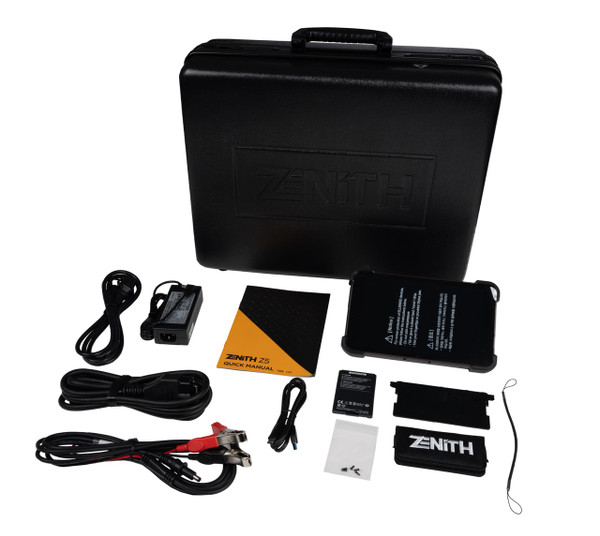

Zenith Z5 Standard Kit (EZDS EZ5KT002)
The Zenith line up of diagnostic tools created by EZDS is the gold standard when it comes to connecting to and working on Asian brand vehicles based on coverage and support. In particular, Zenith tools excel when working on Korean brand vehicles (eg. Kia, Hyundai, Genesis, etc.) because they are one of the only ways use OE software on Korean brand vehicles.
In general, you can expect the best coverage across all Asian vehicle brands plus growing coverage for American and European brands.
Features:
| Hardware Specs | Software Specs | |||
| Category | Zenith Z5 | Category | Zenith 5 | |
| Processor | 2.0GHz Octa-Core | Operating System | Android 9 | |
| System Memory | 3GB RAM, 32GB Internal | Software Update | 1 Year Free | |
| Expandable Storage | Micro SD Card | Coverage | 6 US, 21 Asian, 16 European (passenger & light duty) | |
| Display | 8" FHD (1920x1200) | Security Gateway Access | FCA, Ford, Nissan, Hyundai | |
| Input | Stylus Pen | ADAS Calibration | Included | |
| Buttons | Power, Volume Up & Down | Smart Search | - | |
| Camera | 8MP Auto Focus with LED Flash | Topology Feature | Included | |
| Audio | Speaker, Microphone, 3.5mm Audio Jack | Live Data Graphing | Included | |
| USB Ports | Type A(Host), Type C(Slave) | OBD-II | All 10 Modes | |
| Video Output (HDMI) | - | App Boot Time | 3.8 seconds | |
| Ethernet | RJ-45 (10/100Mbps) | Pre & Post Report | Included | |
| Wi-Fi | 802.11 a/b/g/n | BMS Report | - | |
| Bluetooth | Bluetooth 4.2 | LOG Report | Included | |
| NFC | - | Live Remote Support | Included | |
| Battery | Li-ion 3.8V(3200mAh) | Split Screen | Included | |
| Sensors | Ambient Light, Accelerometer, Gyroscope | |||
| Operating Voltage | DC 9-30V | |||
| Power Input | AC/DC Adapter, DLC cable | |||
| Dimensions & Weight | 225 x 136 x 33mm, 0.65kg | |||
| J2534 | Included | |||
| DoIP | Requires adapter | |||
| CAN FD | Requires adapter | |||
| 24V Support | Included | |||
| Docking Station | - | |||
| VCI Module | - | |||
| VCI Connection | - | |||
| VCI LED Indicator | - | |||
