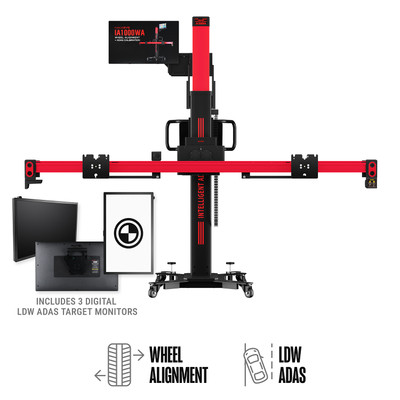

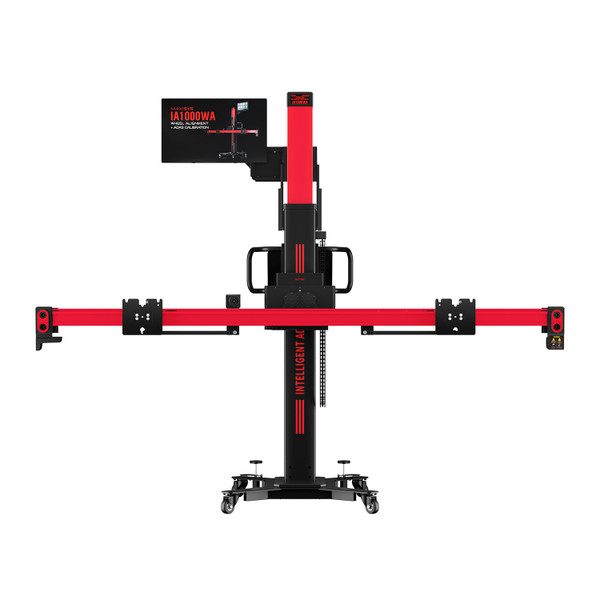

The Autel MaxiSYS IA1000 is an automated alignment and ADAS calibration system. Featuring six high-definition cameras and laser-enabled positioning guides, the IA1000 boasts robotic forward-facing camera target positioning, and laser-guided ACC, blind spot calibrator, and AVM mat placement, plus unlevel floor compensation. Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error. The IA1000, which includes a 24” touchscreen display that attaches to the frame unit, can perform four-wheel alignment and ADAS calibration for U.S., Asian, and European vehicles (IA1000 alignment and ADAS software required). Powered by the included MaxiSYS Ultra S2 advanced diagnostics tablet (not included), the IA1000 offers extensive U.S., Asian, and European vehicle 4-wheel alignment coverage, and industry-leading ADAS calibration coverage. The IA1000 unit provides one-step robotic and vertical LDW target placement via physical targets or with the 27-inch attachable monitors and Autel LDW digital targets, significantly reducing manual operation and setup time (Autel physical patterns and targets and attachable monitors with digital targets are sold separately). The IA1000 is covered by a one-year limited warranty.
- Automated Alignment and ADAS Calibration System with robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator and AVM mat placement capable of performing four-wheel alignment and ADAS calibrations.

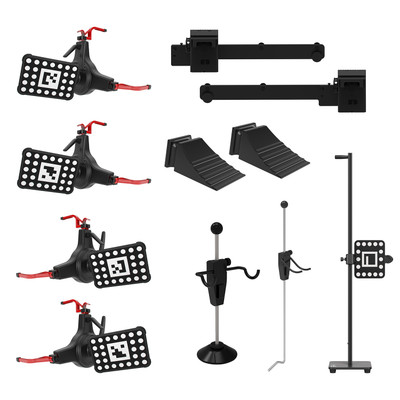

- Includes 24” touchscreen display that attaches to frame unit, four tire clamps, steering wheel and brake lock, distance target, two wheel chocks, and two AVM-placement lasers.
- Unit provides one-step robotic and vertical LDW target placement via physical targets or available 27-inch attachable monitors significantly reducing manual operation and setup time.
- Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error.
- Compatible with Autel targets, patterns, and calibration components, the MaxiSYS Ultra S2 tablet with IA1000 ADAS Upgrade software. Compatible with IA1000 digital target monitors. (Sold separately)
- Offers comprehensive four-wheel alignment coverage of U.S., Asian, and European vehicles with tablet and software purchase.
- Equipped with six high-definition cameras and precision-engineered wheel clamps for industry-leading accuracy to 0.02-degrees.
- Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen.
- Industry-leading dynamic and static ADAS component calibration coverage is available with software, calibration targets, and calibrator purchases.
- Includes one-year limited warranty
